Headrest - 2nd Row - Center (Remove and Replace)

SPECIAL TOOLS

M3 1R Headrest Removal Tool (1132841-00-A)

Remove

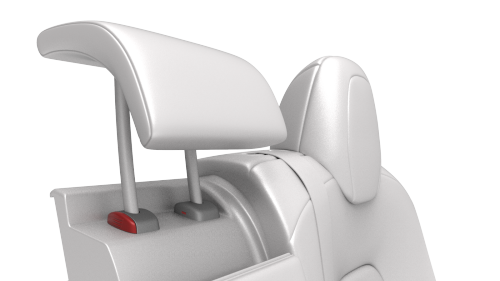

Release the RH and LH center headrest clips simultaneously, and then pull the headrest upwards to remove it.

Note: Use a pocket screwdriver to release the LH headrest clip

Headrest - 2nd Row - Center (Remove and Replace)

Headrest - 2nd Row - Center (Remove and Replace)

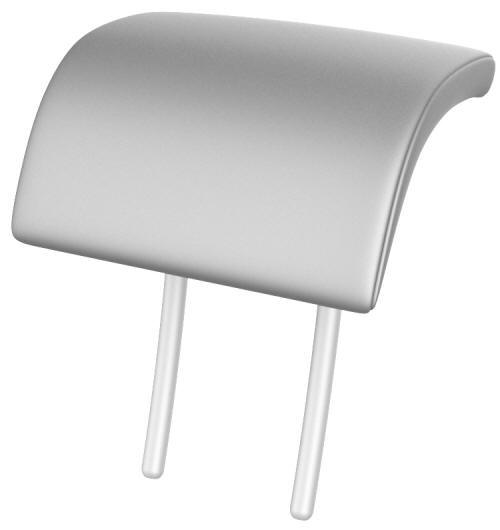

Install

Installation procedure is the reverse of removal.
