Horn - Low Tone (Remove and Replace)

Remove

  1. Remove the front fascia. See Remove.

Horn - Low Tone (Remove and Replace)

  1. Disconnect the harness from the low tone horn connector.

Horn - Low Tone (Remove and Replace)

North America
North America

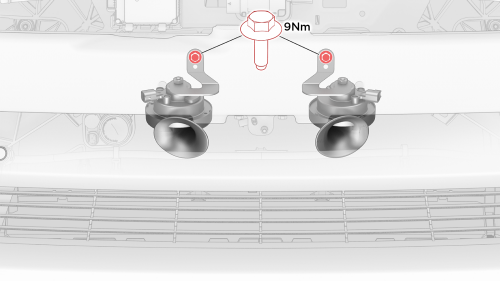

  1. Remove the bolt that attaches the horn to the carrier, and remove the horn from the vehicle. Torque 9 Nm

EMEA
EMEA

Install

Installation procedure is the reverse of removal, except for the following:

  1. Connect a laptop with Toolbox to the vehicle.
  2. In Toolbox, ensure "Actions" is selected then type "Horn" in the search field.
  3. Click the Play button next to "TEST-SELF_VCFRONT_X_HORN", and then select Run.
