Tesla Model 3: HV Battery (Dual Motor) (Remove and Install)

Tesla Model 3 2017-2023 Service Manual / Battery System / HV Battery Assembly / HV Battery (Dual Motor) (Remove and Install)

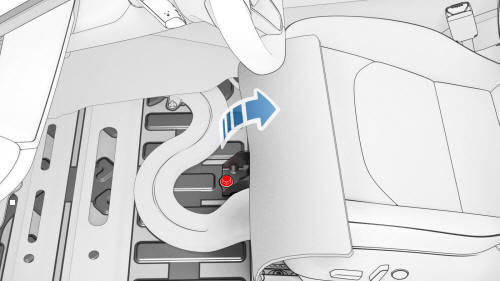

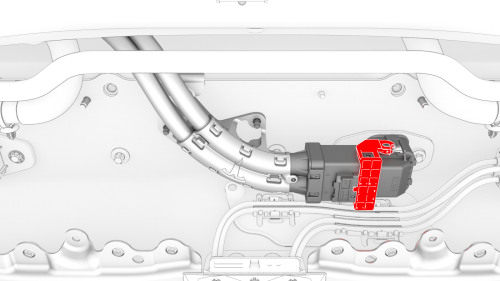

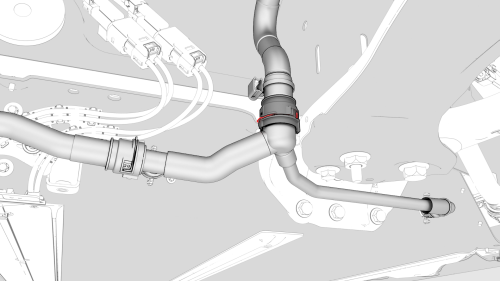

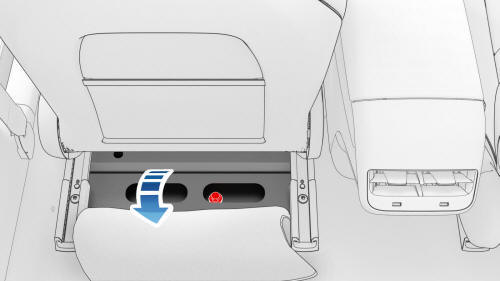

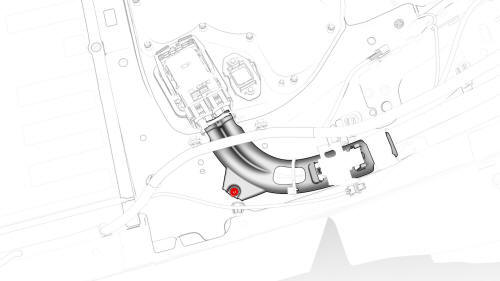

 HV Battery (Dual Motor) - Remove

SPECIAL TOOLSAdapter, Lift Pad, Model 3 (1453419-00-A)Key, Seat Belt Release, Model 3 (1133787-00-A) ASY, Battery Table, Manual Lift (1020566-00-F)Top Plate, Battery Table, Manual Lift (102056

 HV Battery (Dual Motor) - Install

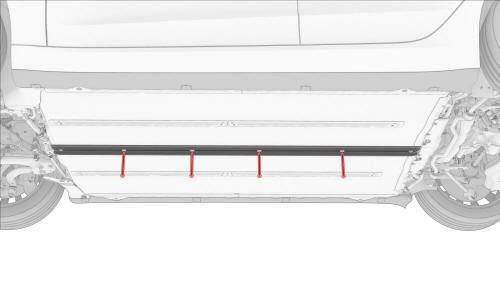

Install Perform step 11 through step 26 of the penthouse air leak test on the HV battery. See Penthouse Air Leak Test.  Hand-tighten the adjustable elements (x4) on th

 HV Battery (Dual Motor) (Remove and Replace)


 Trunk (Remove and Install)- Remove

Remove Remove the trunk lid trim. See Trim - Lid - Trunk (Remove and Replace). Disconnect the LH and RH rear fog/reverse light electrical connectors. Disconnect the rear facing camera electrical connector. Disconnect the trunk exterior release switch electrical connector.
