Kit, Encl Leak Test Adapters, HV Battery
(1144879-00-A)
Cap, Logic Conn, Inv, 3DU (1108272-00-B)
Remove
Remove the
LH and RH lower rocker panel covers. See Cover - Rocker
Panel - Lower - LH (Remove and Replace).
Open all
doors.
Note:Latch the rear doors to prevent accidental
lockout.
Lower all
windows.
Remove the
rear underhood apron. See Underhood Apron - Rear (Remove
and Replace).
Remove the
cabin intake duct. See Duct - Cabin Intake (Remove and
Replace).
Move the
driver seat fully rearwards.
Remove the
LH instrument panel end cap. See End Cap - Instrument
Panel - LH (Remove and Replace).
Remove the
LH middle A-pillar trim. See Trim - A-Pillar - Middle -
LH (Remove and Replace).
Remove the
LH lower A-pillar trim. See Trim - A-Pillar - Lower - LH
(Remove and Replace).
Remove the
driver footwell cover. See Cover - Footwell - Driver
(Remove and Replace).
Remove the
LH front floor mat.
Remove the
LH center console side panel carpet. See Carpet - Side
Panel - Center Console - LH (Remove and Replace).
Move the
front passenger seat fully rearwards.
Remove the
RH instrument panel end cap. See End Cap - Instrument
Panel - LH (Remove and Replace).
Remove the
RH middle A-pillar trim. See Trim - A-Pillar - Middle -
LH (Remove and Replace).
Remove the
RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH
(Remove and Replace).
Remove the
front passenger footwell cover. See Cover - Footwell -
Passenger (LHD) (Remove and Replace).
Remove the
RH front floor mat.
Remove the
RH center console side panel carpet. See Carpet - Side
Panel - Center Console - LH (Remove and Replace).
Move the
driver and front passenger seats fully forward.
Remove the
2nd row floor mat from the vehicle.
Remove the
2nd row lower seat cushion. See Seat Cushion - Lower -
2nd Row (Remove and Replace).
Remove the
RH 2nd row seat side bolster. See Bolster - Side - Seat
- 2nd Row - LH (Remove and Replace).
Remove the
RH rear sill panel trim. See Trim - Sill Panel - Rear -
LH (Remove and Replace).
Remove the
RH upper B-pillar trim. See Trim - B-Pillar - Upper - LH
(Remove and Replace).
Remove the
RH lower B-pillar trim. See Trim - B-Pillar - Lower - LH
(Remove and Replace).
Repeat
step 23 through step 26 for the LH side of the vehicle.
Remove the
clips (x4) and hook-and-loop strips that attach the rear
carpet to the vehicle.
Note: The number of clips on newer vehicles
might vary.

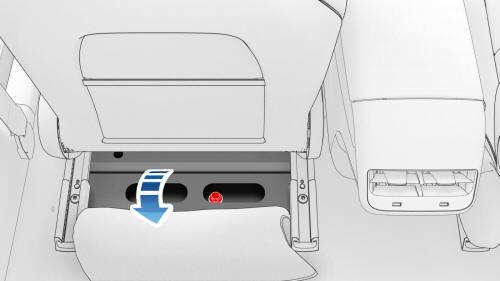

Lift up
the RH side of the rear carpet and insert a hand to feel
if the 4th RH HV battery bolt is present. If the bolt is
present, then remove the bolt.
Lift up
the LH side of the rear carpet and insert a hand to feel
if the 4th LH HV battery bolt is present. If the bolt is
present, then remove the bolt.
Move the
driver seat fully rearwards.
Remove the
clips (x3) that attach the LH front carpet to the
vehicle.
Fold the
LH front carpet for access, and then release the seat
harness from the clip to allow the carpet to fold back
further.
Note: The driver footrest is part of the LH
front carpet.

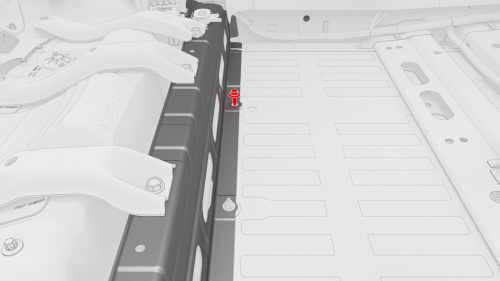

Remove the
LH front inner HV battery bolts.
Check to
see if the 3rd LH HV battery bolt is present. If the
bolt is present, remove the bolt.
Remove the
3rd LH inner HV battery bolt.
If the
vehicle had the 3rd or the 4th LH inner HV battery
bolts, move the driver seat to the center position and
the seat back to the upright position. Otherwise, skip
to the next step.
Separate
the LH side of the rear main carpet perforations to
access the 4th LH inner HV battery bolt, if the bolt is
present.
Note: Might need to undo the hook-and-loop
strips that are attach the front carpets to the
body.
Note: Might need to move the driver seat
forwards or rearwards if necessary to allow
access for the bolt.
Remove the
4th LH inner bolt that attaches the HV battery to the
body.
Remove the
5th LH rear inner bolt that attaches the HV battery to
the body.
Note: Lift up the rear main carpet for access.
Unfold the
LH front carpet back to its original position.
Note: Move the front edge down, and then slide
back the carpet to ease positioning.
Move the
front passenger seat fully rearwards.
Remove the
clips (x4) that attach the RH front carpet to the
vehicle.
Release
the seat electrical harness from the clips to allow the
RH front carpet to fold back more.
Remove the
RH front inner bolts (x2) that attach the HV battery to
the body.
Check if
the 3rd RH bolt is present. Use a flashlight, if needed.
Remove the bolt, if present. Otherwise, skip to the next
step.
Move the
front passenger seat to the center position and the
seatback to the upright position, if the 3rd RH and 4th
RH inner HV battery bolts are present.
Note: Might need to undo the hook-and-loop
strips that are attach the front carpets to the
body.
Note:Might need to move the driver seat
forwards or rearwards if necessary to allow
access for the bolt.
Remove the
4th RH inner bolt that attaches the HV battery to the
body, if equipped. Otherwise, skip to the next step.
Remove the
5th RH rear inner bolt that attaches the HV battery to
the body.
Unfold the
LH front carpet for access, and then release the seat
harness from the clip to allow the carpet to fold back
further.
Note: The driver footrest is part of the LH
front carpet.
Put chocks
on one of the rear wheels to prevent the vehicle from
rolling.
Connect a laptop with Toolbox to the vehicle.
In
Toolbox, click Actions, type "proc_epb" in the search
field, click the play button next to
"PROC_EPBL_START-SERVICE-MODE", and then select Run.
Press the
brake pedal, click Actions, click the play button next
to "PROC_EPBR_START-SERVICE-MODE," and then select Run.
Click
Actions, type "thermal" in the search field, click the
play button next to "PROC_VCFRONT_X_THERMAL-FILL-DRAIN",
and then select Run.
Using
Toolbox, click the play button next to the
"PROC_VCFRONT_X_THERMAL-FILL-DRAIN," and then select
Run.
Note: The 5-way valve is set to Series position,
and the coolant pumps are disabled.
Remove the
laptop from the vehicle, but do not close Toolbox.
Disconnect
12V power. See 12V Power (Disconnect and Connect).
Perform
the vehicle electrical isolation procedure. See Vehicle
Electrical Isolation Procedure.

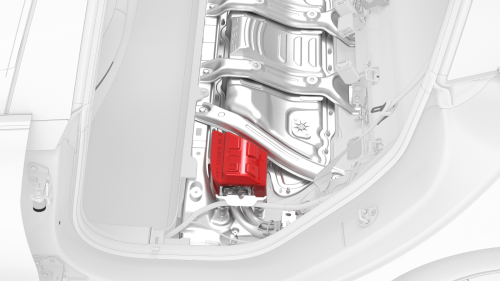

Remove the
HV cap that covers the HV harness located on the LH side
of the penthouse.
Remove the
bolts that attach the charge port to HV battery harness
bracket at the penthouse.
Release
the clip that attaches the charge port to HV harness
connector at the sill area.
Raise the
handle, and then pull up to disconnect the charge port
to HV harness connector from the penthouse.
Remove the
bolts that attach the LH and RH inner penthouse rails to
the penthouse cover.
Remove the
DCDC ground busbar. See Busbar - DCDC Ground (Remove and
Replace).
Remove and
discard the nut that attaches the positive 12V output
cable to the DCDC passthrough, and then remove the cable
from the passthrough.
Note: Inspect the condition of the rubber boot
at the end of the output cable, and replace the
boot if it is melted or damaged.
Partially
close all doors in preparation for pushing the vehicle.
Remove the
wheel chocks from the wheel.
Remove the
wheel chocks from the wheel, and with an assistant, push
the vehicle to a lift, then re-chock the wheel.
Caution:
Push the vehicle for a very short distance and
at less than 1 MPH.
Remove the
body plugs from the underside of the vehicle, and insert
the lift pad adapters into the holes at each lifting arm
pad.
Raise the
vehicle to a comfortable working height.
Caution:
Verify that the vehicle is stable on the lift.
Remove the
front aero shield panel. See Panel - Aero Shield - Front
(Remove and Replace).
Release
the clips along the bottom edge of the LH and RH wheel
arch liners.
Install
bungee straps to pull the LH and RH wheel arch liners
away from the HV battery and expose the coolant hoses.
Remove the
front HV battery skid plate. See Skid Plate - HV Battery
- Front (Remove and Replace).
Disconnect
the electrical harness from the PTC heater HV connector,
and then release the electrical harness from the
bracket.
Disconnect
the electrical harness from the A/C HV connector, and
then release the electrical harness from the bracket.
Remove the
bolt that attaches the front drive unit HV harness to
the front drive unit.
Disconnect
the front drive unit HV harness connector: Release the
locking tab, and then rotate the release lever up to
disengage the connector. After disconnecting the front
drive unit HV harness, set it aside.
Caution:
Do not use excessive force when rotating the
release lever.
Note: Make sure that the alignment tabs on the
front drive unit header are not damaged.
Remove the
bolt that attaches the ground strap to the front drive
unit.
Release
the clip that attaches the front drive unit ground strap
to the front drive unit.
Remove the
bolt that attaches the ground strap bolt to the HV
battery, and then remove the ground strap from the
vehicle.
Perform a
rear powertrain coolant drain. See Powertrain Coolant
(Drain and Refill).
Perform a
platter enclosure coolant drain. See Platter Enclosure
Coolant (Drain and Refill).
Remove the
mid aero shield panel. See Panel - Aero Shield - Mid
(Remove and Replace).
Put the
support stand to support the front portion of the rear
subframe.
Release
the fir tree clips that attach the coolant hoses to the
LH shear plate.
Remove the
smaller bolts that attach the LH shear plate to the
body.
Remove the
larger bolt that attaches the LH shear plate and rear
subframe to the body, and then remove the LH shear
plate.
Re-install
the larger bolt, and hand-tighten the bolt to the rear
subframe.
Repeat
steps 87 through 90 for the RH shear plate.
Remove the
support stand from underneath the rear subframe
With an
assistant, put the battery table in position, and then
lower the vehicle to support the HV battery.
Note:Line up the battery table so that the
center 4 bolts of the HV battery are accessible
through the opening in the battery table.
Remove the
rear HV battery skid plate. See Skid Plate - HV Battery
- Rear (Remove and Replace).
Position
the coolant drain under the rear LH side of the HV
battery.
Release
the clip and disconnect the rear drive unit inverter
inlet hose from the LH underside of the penthouse, and
immediately plug the male and female fittings.
Position
the coolant drain under the rear RH side of the HV
battery.
Release
the clip and disconnect the coolant outlet hose from the
powertrain return hose, and immediately plug the male
and female fittings.
Remove the
coolant drain from underneath the vehicle.
Remove the
nuts that attach the rear drive unit HV electrical
harness bracket to the HV battery.
Release
the locking tab of the rear drive unit HV electrical
harness.
Raise the
handle, and then disconnect the rear drive unit HV
electrical harness from the HV battery connector.
Remove the
center bolts (x4) that attach the HV battery through the
HV battery center rail ski cover.
Remove the
bolts (x8) that attach the HV battery LH and RH support
brackets to the vehicle.
Remove the
front center bolt that attaches the HV battery to the
vehicle.
Remove the
bolts (x4) that attach the front of the HV battery to
the vehicle.
Remove the
bolts (x16) that attach the HV battery to the vehicle.
Note:Record the positions of any installed
washers, as they will be reinstalled to the same
locations during the installation procedure.
With an
assistant, raise the vehicle and remove the HV battery
from underneath the vehicle.
Remove the
HV battery cover gasket. See Gasket - Cover - HV Battery
(Remove and Replace).
Turn the
adjustable elements (x4)
clockwise to remove them from the penthouse
cover.
Note: Keep the adjustable elements so that they
can be installed onto the replacement HV
battery.
Release
the clip and disconnect the LH outer HV battery supply
hose fitting from the LH front of the HV battery platter
enclosure.
Release
the clip and disconnect the LH inner HV battery supply
hose fitting from the LH front of the HV battery platter
enclosure.
Release
the clip and disconnect the RH inner HV battery supply
hose fitting from the RH front of the HV battery platter
enclosure.
Release
the clip and disconnect the RH outer HV battery supply
hose fitting from the RH front of the HV battery platter
enclosure, and remove the hose assembly from the HV
battery.
Release
the clip and disconnect the RH inner HV battery return
hose fitting from the RH rear of the HV battery platter
enclosure.
Release
the clips that attach the RH inner HV battery return
hose to the HV battery.
Release
the clip and disconnect the LH inner HV battery return
hose fitting from the LH rear of the HV battery platter
enclosure.
Release
the clips (x5) that attach the HV battery return hose to
the LH side of the HV battery, and remove the hose from
the HV battery.
Release
the clips (x5) that attach the powertrain return (lower)
hose to the RH side of the HV battery, and remove the
hose from the HV battery.
Release
the clip and disconnect the powertrain supply hose
fitting from the RH rear underside of the penthouse.
Release
the clips (x5) that attach the powertrain supply (upper)
hose to the RH side of the HV battery, and remove the
hose from the HV battery.
Use the
gantry and H-frame hoist to lift the HV battery from the
manual lift battery table.
If the
replacement HV battery has an HV battery center rail
ski, go to step 128.
Release
the clips that attach the PTC heater and A/C compressor
electrical harness bracket to the front of the HV
battery, and then separate the bracket from the battery.
Release
the locking tab, raise the handle, and then disconnect
the PTC heater and A/C compressor electrical harness
from the HV battery connector.
Release
the clips that attach the PTC heater and A/C compressor
electrical harness cover to the rear of the HV battery.
With an
assistant, remove the end bolts that attach the center
rail ski to the HV battery, and then remove the rail ski
from the battery.
Use the
gantry and H-frame hoist to lower the HV battery into
the shipping container.
HV Battery (Dual Motor) - Install
Install
Use the
gantry and H-frame hoist to lift the HV battery out of
the shipping container.
If the
replacement HV battery has an HV battery center rail
ski, go to step 8.
With an
assistant, install the center rail ski to the HV
battery.
Install
the bolts that attach the center rail ski to the HV
battery.Torque 38 Nm
Fasten the
clips that attach the PTC heater and A/C compressor
electrical harness cover to the rear of the HV battery.
Connect
the PTC heater and A/C compressor electrical harness to
the HV battery connector, lower the handle, and attach
the locking tab.
Install
the PTC heater and A/C compressor electrical harness
bracket to the front of the HV battery, and then fasten
the clips that attach the bracket to the HV battery.
Use the
gantry and H-frame hoist to set the HV battery onto the
manual lift battery table.
Install
the powertrain supply hose to the upper clips on the RH
side of the HV battery, and then fasten the clips (x5)
to attach the hose to the HV battery.
Connect
the powertrain supply hose fitting to the RH rear
underside of the penthouse, and then fasten the clip.
Install
the powertrain return hose to the lower clips on the RH
side of the HV battery, and then fasten the clips (x5)
to attach the hose to the HV battery.
Install
the HV battery return hose to the clips on the LH side
of the HV battery, and then fasten the clips (x5) to
attach the hose to the HV battery.
Connect
the LH inner HV battery return hose fitting to the LH
rear of the HV battery platter enclosure, and then
fasten the clip.
Fasten the
clips that attach the RH inner HV battery return hose to
the HV battery.
Connect
the RH inner HV battery return hose fitting to the RH
rear of the HV battery platter enclosure, and then
fasten the clip.
Install
the HV battery supply hose assembly to the HV battery,
connect the RH outer HV battery supply hose fitting to
the RH front of the HV battery platter enclosure, and
then fasten the clip.
Connect
the RH inner HV battery supply hose fitting to the RH
front of the HV battery platter enclosure, and then
fasten the clip.
Connect
the LH inner HV battery supply hose fitting to the LH
front of the HV battery platter enclosure, and then
fasten the clip.
Connect
the LH outer HV battery supply hose fitting to the LH
front of the HV battery platter enclosure, and then
fasten the clip.
Perform
step 11 through step 26 of the penthouse air leak test
on the HV battery. See Penthouse Air Leak Test.
Install
and hand-tighten the adjustable elements (x4) on the
penthouse cover
counter-clockwise so that they are fully
engaged.
Caution:
Hand-tighten only.
Install a
new HV battery cover gasket. See Gasket - Cover - HV
Battery (Remove and Replace).
Install
the HV battery alignment rods; 2 at the front of the
vehicle and 2 at the HV battery near the penthouse.
With an
assistant, position the HV battery underneath the
vehicle.
Lower the
vehicle to the HV battery, and with an assistant, align
the holes with the alignment rods.
Note:Do not fully lower the vehicle onto the HV
battery. The battery will still need to slightly
move to install the bolts in the following
steps.
Caution: Make sure that the coolant hoses and HV
harnesses are not caught on the alignment rods
or sandwiched between the HV battery and the
vehicle.
Hand-tighten the LH and RH bolts (x16) that attach the
HV battery to the body.
Note: Install the washers to the locations
recorded earlier during removal.
Hand-tighten the bolts (x4) that attach the front of the
HV battery to the vehicle.
Hand-tighten the front center bolt that attaches the HV
battery to the vehicle.
Remove the
HV battery alignment rods.
Hand-tighten the bolts (x8) that attach the HV battery
LH and RH support brackets to the vehicle.
Hand-tighten the bolts (x4) that attach the center
portion of the HV battery through the HV battery center
rail ski cover.
LH shown, RH similar
Install
and hand-tighten the smaller bolts that would attach the
LH and RH shear plates to the body.
Note: Do not install the shear plates at this
time.
Fully
raise the handle on the rear drive unit HV electrical
harness.
Attach the
HV connector lever lock onto the back of the HV
electrical harness.
Firmly
connect the HV electrical harness to the HV battery
connector.
Caution:
Make sure that the harness fits the connector
squarely and tightly.
While
pressing the harness to the connector, remove the HV
connector lever lock.
While
pressing the harness to the connector, fully lower the
handle.
Slide the
release to lock the HV electrical harness.
Install
the nuts that attach the rear drive unit HV electrical
harness bracket to the HV battery.Torque 10 Nm
Position
the coolant drain under the rear RH side of the HV
battery.
Remove the
plugs from the coolant outlet hose and the powertrain
return hose, immediately connect the male and female
fittings, and then fasten the clip.
Note: Perform a push-pull-push test on the
fittings to make sure that they are secure.
Position
the coolant drain under the rear LH side of the HV
battery.
Remove the
plugs from the rear drive unit inverter inlet hose and
the LH underside of the penthouse, immediately connect
the male and female fittings, and then fasten the clip.
Note: Perform a push-pull-push test on the
fittings to make sure that they are secure.
Remove the
coolant drain container from underneath the vehicle.
Install
the rear HV battery skid plate, but only hand-tighten
the fasteners. See Skid Plate - HV Battery - Rear
(Remove and Replace).
Open the
LH rear door.
Caution:
Do not damage any components while working
around this area.
Hand-tighten the 5th LH rear inner bolt that attaches
the HV battery to the body.
Note:Lift up the rear main carpet for access.
Hand-tighten the 4th LH inner bolt that attaches the HV
battery to the body.
Partially
close, but do not latch, the LH rear door.
Open the
LH front door.
Caution: Do not damage any components while working
around this area.
Hand-tighten the 3rd LH inner bolt that attaches the HV
battery to the body.
Hand-tighten the LH front inner bolts (x2) that attach
the HV battery to the body.
Partially
close, but do not latch, the LH front door.
Open the
RH rear door.
Caution: Do not damage any components while working
around this area.
Hand-tighten the 5th RH rear inner bolt that attaches
the HV battery to the body.
Hand-tighten the 4h RH inner bolt that attaches the HV
battery to the body, if equipped.
Partially
close, but do not latch, the RH rear door.
Open the
RH front door.
Caution: Do not damage any components while working
around this area.
Hand-tighten the 3rd RH inner bolt that attaches the HV
battery to the body, if equipped.
Hand-tighten the RH front inner bolts (x2) that attach
the HV battery to the body.
Partially
close, but do not latch, the RH front door.
With an
assistant, lower the vehicle onto the HV battery
completely.
Torque the
LH and RH bolts (x16) that attach the HV battery to the
vehicle.
Torque 30 Nm
Torque the
bolts (x4) that attach the front of the HV battery to
the vehicle.
Torque 30 Nm
Torque the
front center bolt that attaches the HV battery to the
vehicle.
Torque 10 Nm
Torque the
bolts (x8) that attach the HV battery LH and RH support
brackets to the vehicle.
Torque 110 Nm
Tighten
the bolts (x4) that attach the center portion of the HV
battery through the center ski cover.
Torque 34 Nm
Torque the
fasteners that attach the rear skid plate to the
vehicle. See Skid Plate - HV Battery - Rear (Remove and
Replace).
With an
assistant, raise the vehicle, and then remove the
battery table from underneath the vehicle. Set the
vehicle to a comfortable working height.
Put the
support stand to support the front portion of the rear subframe.
LH shown, RH similar
Remove the
smaller bolts (x2) and the larger bolt that are used to
attach the LH shear plate to the vehicle.
LH shown, RH similar
Install
the LH shear plate, and then install the smaller bolts
(x2) that attach the shear plate to the HV battery.
Torque 30 Nm
Install
the larger bolt that attaches the shear plate to the
vehicle, and then mark the bolt with a paint pen.
Torque 128 Nm
LH shown, RH similar
Fasten the
fir tree clips that attach the coolant hoses to the LH
shear plate.
Repeat
steps 71 through 74 for the RH shear plate.
Remove the
support stand from underneath the rear subframe
Install
the mid aero shield panel. See Panel - Aero Shield - Mid
(Remove and Replace).
Position
the coolant drain under the front LH side of the HV
battery.
Remove the
plugs from the chiller to HV battery hose and the
manifold at the LH side of the vehicle, immediately
connect the male and female fittings, and then fasten
the clip.
Note:Perform a push-pull-push test on the
fittings to make sure that they are secure.
Fasten the
clips that attach the chiller to HV battery hose to the
body.
Remove the
plugs from the HV battery return hose at the LH side of
the vehicle, immediately connect the male and female
fittings, and then fasten the clip.
Note:Perform a push-pull-push test on the
fittings to make sure that they are secure.
Position
the coolant drain under the front RH side of the HV
battery.
Remove the
plugs from the rear powertrain supply hose at the RH
side of the vehicle, immediately connect the male and
female fittings, and then fasten the clip.
Note: Perform a push-pull-push test on the
fittings to make sure that they are secure.
Remove the
plugs from the powertrain return hose at the RH side of
the vehicle, immediately connect the male and female
fittings, and then fasten the clip.
Note: Perform a push-pull-push test on the
fittings to make sure that they are secure.
Remove the
coolant drain from underneath the vehicle.
Install
the bolt that attaches the ground strap to the HV
battery
Torque 10 Nm
Install
the clip that attaches the front drive unit ground strap
to the front drive unit.
Install
the bolt that attaches the ground strap to the front
drive unit.
Torque 6 Nm
Install
the front drive unit HV harness connector special tool
on the front drive unit HV harness connector.
Connect
the front drive unit harness connector to the front
drive unit.
Note: Make sure the connector is fully seated,
and that the front drive unit alignment tooth
makes contact with the front drive unit harness
connector lever.
Remove the
front drive unit HV harness connector special tool.
Slowly
latch the release handle while pressing the front drive
unit HV harness connector into the front drive unit.
Note:The front drive unit alignment teeth and HV harness connector alignment teeth should be
interlocked.
Slide the
red release tab to lock the front drive unit HV harness
connector.
Install
the bolt that attaches the front drive unit HV harness
to the front drive unit.
Torque 10 Nm
Connect
the A/C HV connector.
Connect
the PTC HV electrical connector, and then install the
harnesses to the bracket.
Install
the front HV battery skid plate. See Skid Plate - HV
Battery - Front (Remove and Replace).
Remove the
bungee straps from the LH and RH wheel arch liners.
Fasten the
clips along the bottom edge of the LH and RH wheel arch
liners.
Install
the front aero shield panel. See Panel - Aero Shield -
Front (Remove and Replace).
Lower the
vehicle fully, and chock a wheel.
Remove the
lift adaptors from the body, and then install the body
plugs.
Remove the
chock, and with an assistant, push the vehicle away from
the lift to a stall, and then re-chock the wheel.
Caution: Push the vehicle for a very short distance and
at less than 1 MPH.
Open all
doors.
Connect
the positive 12V output cable to the DCDC passthrough,
install a new nut to attach the cable, and mark the nut
with a green paint pen after torque.
Torque 9 Nm
Caution: Make sure that the rubber boot is not trapped
under the cable lug or pinched between the cable
lug and nut.
Replace
the cover on the positive 12V output cable at the DCDC
passthrough, and then press down to attach the cover.
Install
the DCDC ground busbar. See Busbar - DCDC Ground (Remove
and Replace).
Install
the bolts that attach the LH and RH inner 2nd row rails
to the penthouse cover.
Torque 24 Nm
Connect
the charge port HV harness connector to the penthouse;
use one hand to support the harness connector while the
other hand latches the locking tab.
Note:Verify that the charge port HV harness
connector latch is not damaged and fully secured
in the latched position.
Install
the clip that attaches the charge port to HV harness
connector to the LH lower C-pillar.
Install
the harness clips, and then the bolts that attach the
charge port to HV battery harness bracket at the
penthouse.
Torque 10 Nm
Install
the HV cap that covers the HV harness located on the LH
side of the penthouse.
Connect
12V power. See 12V Power (Disconnect and Connect).
Shift into
Park to release the Electronic Parking Brake service
mode, and then remove the wheel chock.
Connect a laptop with Toolbox to the vehicle.
Perform a
cooling system vacuum refill. See Cooling System (Vacuum
Refill).
Disconnect
the laptop from the vehicle.
Tighten
the 5th LH rear inner bolt that attaches the HV battery
to the body.
Torque 66 Nm
Note:Lift up the rear main carpet for access.
Tighten
the 4th LH inner bolt that attaches the HV battery to
the body.
Torque 66 Nm
Tighten
the LH front inner HV battery bolts (x2) that attach the
HV battery to the body.
Torque 136 Nm
Unfold the
LH front main carpet back to its original position; move
the front edge down and slide back the section up to
ease positioning. Install the seat electrical harness
into the clip.
Install
the clips (x3) that attach the LH front carpet to the
vehicle.
Move the
driver seat fully forwards.
Tighten
the 5th RH rear inner bolt that attaches the HV battery
to the body.
Torque 66 Nm
Tighten
the 4th RH inner bolt that attaches the HV battery to
the body, if equipped.
Torque 66 Nm
Unfold the
RH side of the rear carpet back to its original
position.
Move the
front passenger seat fully rearward.
Tighten
the bolt that attaches the 3rd RH inner HV battery bolt
to the body, if equipped.
Tighten
the RH front inner bolts (x2) that attach the HV battery
to the body.
Torque 136 Nm
Unfold the
RH front main carpet back to its original position; move
the front edge down and slide back the section up to
ease positioning. Install the seat electrical harness
into the clip.
Install
the clips (x4) that attach the RH front carpet to the
vehicle.
Move the
front passenger seat fully forward.
Install
the clips (x4) and hook-and-loop strips that attach the
rear carpet to the vehicle.
Note:The number of clips on newer vehicles
might vary.
Install
the LH lower B-pillar trim. See Trim - B-Pillar - Lower
- LH (Remove and Replace).
Install
the LH upper B-pillar trim. See Trim - B-Pillar - Upper
- LH (Remove and Replace).
Install
the LH rear sill panel trim. See Trim - Sill Panel -
Rear - LH (Remove and Replace).
Install
the LH 2nd row seat side bolster. See Bolster - Side -
Seat - 2nd Row - LH (Remove and Replace).
Repeat
step 137 through step 140 for the RH side of the
vehicle.
Install
the 2nd row lower seat cushion. See Seat Cushion - Lower
- 2nd Row (Remove and Replace).
Install
the 2nd row floor mat inside the vehicle.
Install
the RH center console side panel carpet. See Carpet -
Side Panel - Center Console - LH (Remove and Replace).
Install
the RH front floor mat.
Install
the front passenger footwell cover. See Cover - Footwell
- Passenger (LHD) (Remove and Replace).
Install
the RH lower A-pillar trim. See Trim - A-Pillar - Lower
- LH (Remove and Replace).
Install
the RH middle A-pillar trim. See Trim - A-Pillar -
Middle - LH (Remove and Replace).
Install
the RH instrument panel end cap. See End Cap -
Instrument Panel - LH (Remove and Replace).
Install
the LH center console side panel carpet. See Carpet -
Side Panel - Center Console - LH (Remove and Replace).
Install
the LH front floor mat.
Install
the driver footwell cover. See Cover - Footwell - Driver
(Remove and Replace).
Install
the LH lower A-pillar trim. See Trim - A-Pillar - Lower
- LH (Remove and Replace).
Install
the LH middle A-pillar trim. See Trim - A-Pillar -
Middle - LH (Remove and Replace).
Install
the LH instrument panel end cap. See End Cap -
Instrument Panel - LH (Remove and Replace).
Restore
the driver and front passenger seats back to their
original position.
Install
the cabin intake duct. See Duct - Cabin Intake (Remove
and Replace).
Install
the rear underhood apron. See Underhood Apron - Rear
(Remove and Replace).
Close the
hood and all four doors.
Install
the LH and RH lower rocker panel covers. See Cover -
Rocker Panel - Lower - LH (Remove and Replace).
Remove
Remove the LH side rail trim. See Trim - Side Rail - LH (Remove and
Install).
Disconnect the electrical connector from the FM antenna amplifier.
Remove the bolt and release the clip that attach the FM antenna
amplifier to the C-pillar, and then remove the amplifier from the
Remove
Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd
Row (Remove and Replace).
Remove the rear underhood apron. See Underhood Apron - Rear (Remove and
Replace).
Disconnect 12V power. See 12V Power (Disconnect and Connect).
Remove the LH 2nd row buckle. See Buckle -
