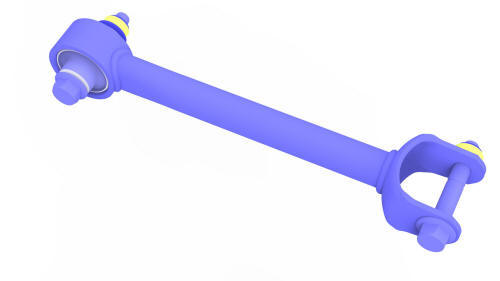

Link - Fore - Upper - Rear - LH (Remove and Replace)

SPECIAL TOOLS

Tool, Spring Compressor, Hook, Model 3 (1135103-00-A)

Remove

  1. Remove the rear subframe assembly. See Subframe Assembly - Rear (Remove and Install).

Link - Fore - Upper - Rear - LH (Remove and Replace)

  1. Remove the bolt and nut that attach the LH rear upper fore link to the knuckle.

Link - Fore - Upper - Rear - LH (Remove and Replace)

  1. With an assistant, remove the bolt and nut that attach the LH rear upper fore link to the subframe.
  2. Remove the LH rear upper fore link from the vehicle

Install

  1. With an assistant, hand-tighten the bolt and nut that attach the LH rear upper fore link to the subframe.
  2. With an assistant, hand-tighten the bolt and nut that attach the LH rear upper fore link to the knuckle.

Note: The tightening of the LH rear upper fore link bolts will take place during the installation of the rear subframe assembly onto the vehicle.

  1. Install the rear subframe assembly. See Subframe Assembly - Rear (Remove and Install).
