Tesla Model 3: Check Base - Sun Visor - Driver (Remove and Replace)

Tesla Model 3 2017-2026 Service Manual / Interior Trim / Interior Mirror and Sun Visors / Check Base - Sun Visor - Driver (Remove and Replace)

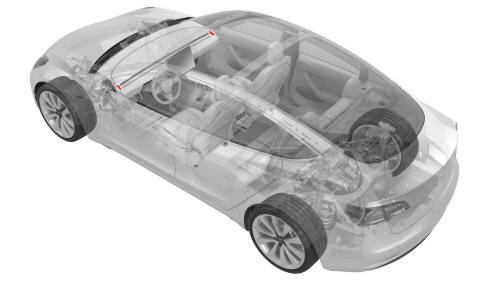

Check Base - Sun Visor - Driver (Remove and Replace)

Remove

  1. Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).

Check Base - Sun Visor - Driver (Remove and Replace)

  1. Release the clips that attach the LH air wave end cap to the main instrument panel decor trim, and then remove the cap from the vehicle.

Install

Installation procedure is the reverse of removal.
