Closeout - Armrest - 2nd Row (Remove and Replace)

Remove

  1. Remove the 2nd row armrest. See Armrest - 2nd Row (Remove and Replace).

Closeout - Armrest - 2nd Row (Remove and Replace)

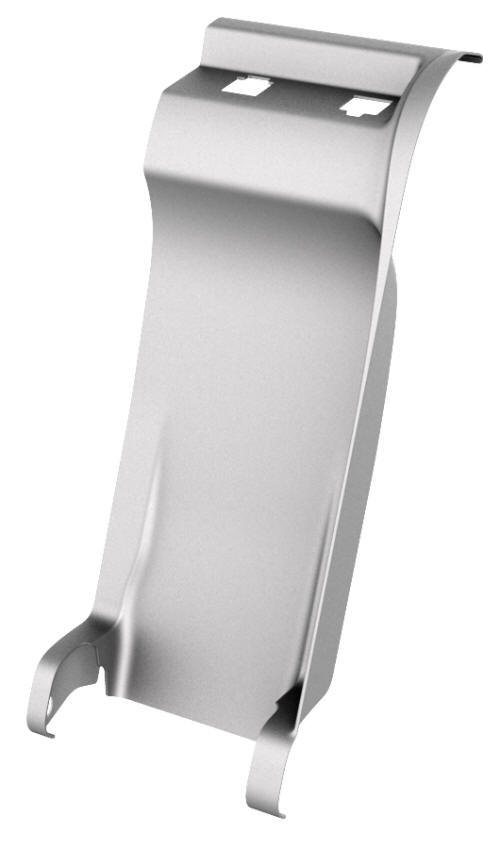

  1. Release the clips and tabs that attach the 2nd row armrest closeout to the 2nd row seat, and then remove the armrest closeout.

Install

Installation procedure is the reverse of removal.
