Duct - Air Wave - RH (Remove and Replace)

Remove

  1. Remove the glove box. See Glove Box (LHD) (Remove and Replace).

Duct - Air Wave - RH (Remove and Replace)

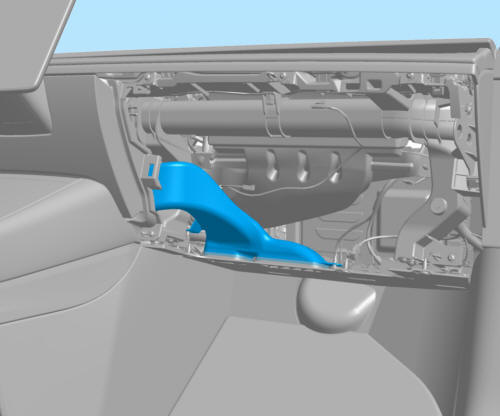

  1. Remove the RH footwell air duct from the HVAC module, and then remove the duct from the vehicle.

Duct - Air Wave - RH (Remove and Replace)

  1. Release the clips that attach the RH air wave duct to the cross car beam, and then remove the duct from the cross car beam.

Install

Installation procedure is the reverse of removal.
